ドメインの認証方法は、利用しているドメインサーバのDNS設定にDNSレコードの追加を行います。SendGridで指定されたDNSレコードを追加する必要があります。SendGrid側でDNS変更を確認し、DNS変更の確認が完了すれば、ドメインの認証が終了します。 ドメイン認証は、SendGridのDomain Authentication（Authenticate Your Domain）のダイアログに従い、Install DNS Recourdsまで進み、登録するDNS情報を入手して下さい。
A string containing the verification results of any DKIM and domain keys signatures in the message.
CONTENT-IDS
A string containing the number of attachments.
TO
Email recipient field, as taken from the message headers.
HTML
HTML body of email. If not set, email did not have an HTML body.
FROM
Email sender, as taken from the message headers.
SENDER_IP
A string of the sender’s ip address.
SPAM_REPORT
Spam Assassin’s spam report.
ENVELOPE
A string containing the SMTP envelope. This will have 2 variables: to, which is a single-element array containing the address that we received the email to, and from, which is the return path for the message.
ATTACHMENTS
Number of attachments included in email.
SUBJECT
Email Subject.
SPAM_SCORE
Spam Assassin’s rating for whether or not this is spam.
ATTACHMENT-INFO
A JSON map where the keys are named attachment{X}. Each attachment key points to a JSON object containing three fields, filename, type, and content-id. The filename field is the name of the file (if it was provided). The type field is the media type of the file. X is the total number of attachments. For example, if the number of attachments is 0, there will be no attachment files. If the number of attachments is 3, parameters attachment1, attachment2, and attachment3 will have file uploads.
CHARSETS
A string containing the character sets of the fields extracted from the message.
SPF
The results of the Sender Policy Framework verification of the message sender and receiving IP address.
[Date] array(16) {
["headers"]=>
string(1970) "Received: by mx0047p1mdw1.sendgrid.net with SMTP id 6WCVv7KAWn Wed, 27 Jul 2016 20:53:06 +0000 (UTC)
Received: from mail-io0-f169.google.com (mail-io0-f169.google.com [209.85.223.169]) by mx0047p1mdw1.sendgrid.net (Postfix) with ESMTPS id AA9FFA817F2 for <example@example.comom>; Wed, 27 Jul 2016 20:53:06 +0000 (UTC)
Received: by mail-io0-f169.google.com with SMTP id b62so81593819iod.3 for <example@example.comom>; Wed, 27 Jul 2016 13:53:06 -0700 (PDT)
DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=sendgrid.com; s=ga1; h=mime-version:from:date:message-id:subject:to; bh=DpB1CYYeumytcPF3q0Upvx3Sq/oF4ZblEwnuVzFwqGI=; b=GH5YTxjt6r4HoTa+94w6ZGQszFQSgegF+Jlv69YV76OLycJI4Gxdwfh6Wlqfez5yID 5dsWuqaVJZQyMq/Dy/c2gHSqVo60BKG56YrynYeSrMPy8abE/6/muPilYxDoPoEyIr/c UXH5rhOKjmJ7nICKu1o99Tfl0cXyCskE7ERW0=
X-Google-DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=1e100.net; s=20130820; h=x-gm-message-state:mime-version:from:date:message-id:subject:to; bh=DpB1CYYeumytcPF3q0Upvx3Sq/oF4ZblEwnuVzFwqGI=; b=Sq6LVHbmywBdt3sTBn19U8VOmelfoJltz8IcnvcETZsYwk96RBxN+RKMN5fOZSKw4j 15HrgdIFfyDmp67YK0ygvOITlTvZ6XY5I0PtnvDtAQt79kS3tKjI3QKJoEp/ZjIjSzlL KG7agl6cxFgBbIN0yHWBOvy3O+ZXY8tZdom1yOvULjmjW1U9JkdOs+aJ6zq4qhZX/RM/ tIgLB461eJ5V95iQDDc5Ibj9Cvy4vJfXLQRO0nLVQAT2Yz58tkEO1bDZpWOPAyUNneIL yhIWp+SpbuqhMA68mq0krG1PjmWalUbpVcGJIGuOKB9mQFFo/MqdrUCjvYnyo1jPLPeX psdQ==
X-Gm-Message-State: AEkoousvdxmDoxLlTUYJ1AOmCGJv77xRBBlfKv6YrthH0M2NueMwlOxUD6t8nidE9uonXbdJ/DQy/chmHUnN//a4
X-Received: by 10.107.6.101 with SMTP id 98mr38024553iog.41.1469652785829; Wed, 27 Jul 2016 13:53:05 -0700 (PDT)
MIME-Version: 1.0
Received: by 10.107.48.17 with HTTP; Wed, 27 Jul 2016 13:53:05 -0700 (PDT)
From: Sender Name <example@example.com>
Date: Wed, 27 Jul 2016 14:53:05 -0600
Message-ID: <CAN_P_JMvV7ZpAQhOnDienypLrJmuhN=LQWweu4yScw4jQyXY2w@mail.gmail.com>
Subject: Different File Types
To: example@example.comom
Content-Type: multipart/mixed; boundary=001a113f8ad03e85160538a4343c
"
["dkim"]=>
string(22) "{@sendgrid.com : pass}"
["content-ids"]=>
string(37) "{"ii_1562e2169c132d83":"attachment1"}"
["to"]=>
string(26) "example@example.comom"
["html"]=>
string(479) "<div dir="ltr">Here's an email with multiple attachments<div><br></div><div><img src="cid:ii_1562e2169c132d83" alt="Inline image 1" width="455" height="544"><br clear="all"><div><br></div>-- <br><div class="gmail_signature" data-smartmail="gmail_signature"><div dir="ltr"><img src="https://sendgrid.com/brand/sg-logo-email.png" width="96" height="17"><br><div><br></div></div></div>
</div></div>
"
["from"]=>
string(33) "Sender Name example@example.com"
["text"]=>
string(139) "Here's an email with multiple attachments
"
["sender_ip"]=>
string(14) "209.85.223.169"
["spam_report"]=>
string(844) "Spam detection software, running on the system "mx0047p1mdw1.sendgrid.net", has
identified this incoming email as possible spam. The original message
has been attached to this so you can view it (if it isn't spam) or label
similar future email. If you have any questions, see
@@CONTACT_ADDRESS@@ for details.
Content preview: Here's an email with multiple attachments [image: Inline image
1] -- [...]
Content analysis details: (2.6 points, 5.0 required)
pts rule name description
---- ---------------------- --------------------------------------------------
0.8 HTML_IMAGE_RATIO_02 BODY: HTML has a low ratio of text to image area
0.0 HTML_MESSAGE BODY: HTML included in message
1.8 HTML_IMAGE_ONLY_08 BODY: HTML: images with 400-800 bytes of words
0.0 T_MIME_NO_TEXT No text body parts
"
["envelope"]=>
string(66) "{"to":["example@example.comom"],"from":"example@example.com"}"
["attachments"]=>
string(1) "2"
["subject"]=>
string(20) "Different File Types"
["spam_score"]=>
string(5) "2.597"
["attachment-info"]=>
string(287) "{"attachment2":{"filename":"DockMcWordface.docx","name":"DockMcWordface.docx","type":"application/vnd.openxmlformats-officedocument.wordprocessingml.document"},"attachment1":{"filename":"MG_2359.jpg","name":"_MG_2359.jpg","type":"image/jpeg","content-id":"ii_1562e2169c132d83"}}"
["charsets"]=>
string(77) "{"to":"UTF-8","html":"UTF-8","subject":"UTF-8","from":"UTF-8","text":"UTF-8"}"
["SPF"]=>
string(4) "pass"
}
<?php
/*************************************************************************
* sendgrid-api (MAIN)
* Home Tools for private. Using IFTTT and Google Home etc
*
* PHP 5 or later
*
* @category Home IoT
* @author Miki
* @url https://www.miki-ie.com/
* @copyright 2019 (c) MIKI-IE All rights Reserved.
* @license https://opensource.org/licenses/mit-license.html MIT License
* @version 1.0
*************************************************************************/
//ログのファイル名
define("SENDGRID_API_LOG_NAME","sendgrid");
//DB
define("DB_HOST","@IP_Adress@:@Port@");
define("DB_USER","@User@");
define("DB_PASS","@Password@");
define("DB_DBNAME","@DB_Name@");
define("DB_TABLENAME1","@TableName1@");
define("DB_TABLENAME2","@TableName2@");
function addDBRecord($table, $datetime, $value1) {
$mysqli = new mysqli(DB_HOST, DB_USER, DB_PASS, DB_DBNAME);
if (mysqli_connect_errno()) {
logger("Connect failed: ".mysqli_connect_error(),"ERROR");
exit();
}
if (!$mysqli->set_charset("utf8")) {
logger("Error loading character set utf8: ".$mysqli->error,"ERROR");
exit();
}
switch ($table) {
case DB_TABLENAME1:
// SQL(INSERT)を作成
$sql = "INSERT INTO $table (
DATETIME, COUNT
) VALUES (
'$datetime', $value1
)";
break;
//addDBRecord(DB_TABLENAME2, $datetime_text, $state_text);
case DB_TABLENAME2:
// SQL(INSERT)を作成
$str = mb_convert_encoding($value1, "UTF-8");
$sql = "INSERT INTO $table (
DATETIME2, STATE
) VALUES (
'$datetime', N'$str'
)";
break;
default:
logger("Internal DB Tabel Name Error. table:{$table}","ERROR");
}
if (!$mysqli->query($sql)) {
logger("SQL query error Errormessage: ".$mysqli->error,"ERROR");
}
$mysqli->close();
}
function logger($text, $level) {
$datetime = date('Y-m-d H:i:s');
$date = date('Ym');
$file_name = __DIR__ . "/log/".SENDGRID_API_LOG_NAME."-{$date}.log";
$text = "{$datetime} [{$level}] {$text}" . PHP_EOL;
echo $text;
if(!(file_exists($file_name))){
touch($file_name);
chmod($file_name, 0777);
}
return error_log(print_r($text, TRUE), 3, $file_name);
}
$post_from = $_POST['from'];
$post_charsets = $_POST['charsets'];
$post_charsets_array = json_decode($post_charsets, true);
$post_charsets_all = print_r($post_charsets_array, true);
$post_encode_subject = mb_convert_encoding($_POST['subject'], "UTF-8", $post_charsets_array["subject"]);
$post_encode_subject = preg_replace('/[\x00-\x1F\x7F]/', '', $post_encode_subject);
$post_encode_text = mb_convert_encoding($_POST['text'], "UTF-8", $post_charsets_array["text"]);
$post_encode_text = preg_replace('/[\x00-\x1F\x7F]/', '', $post_encode_text);
logger("mb_convert_encoding, post_subject : {$post_encode_subject}","DEBUG");
logger("mb_convert_encoding, post_text : {$post_encode_text}","DEBUG");
$text_substr = mb_substr($post_text, 0, 15);
logger("Start sendgrid: key={$key} , from={$post_from} , subject={$post_subject} , text={$text_substr}","INFO");
if(isset($_POST['from'])) {
switch ($post_from) {
case 'aaa1@bbb.ccc': //メール受信内容に合わせて個別処理。以下はメール本文から文字列切り出しを実施
$start = mb_strpos($post_text, "時刻：");
$datetime_text = mb_substr($post_text, $start + 4, 19,"utf-8");
logger("Start CAM-A7DE datetime : {$datetime_text}","INFO");
addDBRecord(DB_TABLENAME1, $datetime_text, 1);
break;
case 'aaa2@bbb.ccc': //メール受信内容に合わせて個別処理。以下はメール本文から文字列切り出しを実施
$datetime_text = mb_substr($post_text, 0, 16,"utf-8");
$temp_text = mb_substr($post_text, 18);
$end_point = mb_strpos($temp_text, "。");
$state_text = mb_substr($temp_text, 0, $end_point,"utf-8");
logger("end_point : {$end_point} ,state : {$state_text}","DEBUG");
logger("Start CSP-Security datetime : {$datetime_text} state : {$state_text}","INFO");
addDBRecord(DB_TABLENAME2, $datetime_text, $state_text);
break;
default:
logger("This is private API. (in Default)","ERROR");
}
}else{
logger("This is private API. (in else)","ERROR");
}
?>
Inbound Email Parse WebhookのPOST情報
HEADERS
The raw headers of the email.
DKIM
A string containing the verification results of any DKIM and domain keys signatures in the message.
CONTENT-IDS
A string containing the number of attachments.
TO
Email recipient field, as taken from the message headers.
HTML
HTML body of email. If not set, email did not have an HTML body.
FROM
Email sender, as taken from the message headers.
SENDER_IP
A string of the sender’s ip address.
SPAM_REPORT
Spam Assassin’s spam report.
ENVELOPE
A string containing the SMTP envelope. This will have 2 variables: to, which is a single-element array containing the address that we received the email to, and from, which is the return path for the message.
ATTACHMENTS
Number of attachments included in email.
SUBJECT
Email Subject.
SPAM_SCORE
Spam Assassin’s rating for whether or not this is spam.
ATTACHMENT-INFO
A JSON map where the keys are named attachment{X}. Each attachment key points to a JSON object containing three fields, filename, type, and content-id. The filename field is the name of the file (if it was provided). The type field is the media type of the file. X is the total number of attachments. For example, if the number of attachments is 0, there will be no attachment files. If the number of attachments is 3, parameters attachment1, attachment2, and attachment3 will have file uploads.
CHARSETS
A string containing the character sets of the fields extracted from the message.
SPF
The results of the Sender Policy Framework verification of the message sender and receiving IP address.
[Date] array(16) {
["headers"]=>
string(1970) "Received: by mx0047p1mdw1.sendgrid.net with SMTP id 6WCVv7KAWn Wed, 27 Jul 2016 20:53:06 +0000 (UTC)
Received: from mail-io0-f169.google.com (mail-io0-f169.google.com [209.85.223.169]) by mx0047p1mdw1.sendgrid.net (Postfix) with ESMTPS id AA9FFA817F2 for <example@example.comom>; Wed, 27 Jul 2016 20:53:06 +0000 (UTC)
Received: by mail-io0-f169.google.com with SMTP id b62so81593819iod.3 for <example@example.comom>; Wed, 27 Jul 2016 13:53:06 -0700 (PDT)
DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=sendgrid.com; s=ga1; h=mime-version:from:date:message-id:subject:to; bh=DpB1CYYeumytcPF3q0Upvx3Sq/oF4ZblEwnuVzFwqGI=; b=GH5YTxjt6r4HoTa+94w6ZGQszFQSgegF+Jlv69YV76OLycJI4Gxdwfh6Wlqfez5yID 5dsWuqaVJZQyMq/Dy/c2gHSqVo60BKG56YrynYeSrMPy8abE/6/muPilYxDoPoEyIr/c UXH5rhOKjmJ7nICKu1o99Tfl0cXyCskE7ERW0=
X-Google-DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=1e100.net; s=20130820; h=x-gm-message-state:mime-version:from:date:message-id:subject:to; bh=DpB1CYYeumytcPF3q0Upvx3Sq/oF4ZblEwnuVzFwqGI=; b=Sq6LVHbmywBdt3sTBn19U8VOmelfoJltz8IcnvcETZsYwk96RBxN+RKMN5fOZSKw4j 15HrgdIFfyDmp67YK0ygvOITlTvZ6XY5I0PtnvDtAQt79kS3tKjI3QKJoEp/ZjIjSzlL KG7agl6cxFgBbIN0yHWBOvy3O+ZXY8tZdom1yOvULjmjW1U9JkdOs+aJ6zq4qhZX/RM/ tIgLB461eJ5V95iQDDc5Ibj9Cvy4vJfXLQRO0nLVQAT2Yz58tkEO1bDZpWOPAyUNneIL yhIWp+SpbuqhMA68mq0krG1PjmWalUbpVcGJIGuOKB9mQFFo/MqdrUCjvYnyo1jPLPeX psdQ==
X-Gm-Message-State: AEkoousvdxmDoxLlTUYJ1AOmCGJv77xRBBlfKv6YrthH0M2NueMwlOxUD6t8nidE9uonXbdJ/DQy/chmHUnN//a4
X-Received: by 10.107.6.101 with SMTP id 98mr38024553iog.41.1469652785829; Wed, 27 Jul 2016 13:53:05 -0700 (PDT)
MIME-Version: 1.0
Received: by 10.107.48.17 with HTTP; Wed, 27 Jul 2016 13:53:05 -0700 (PDT)
From: Sender Name <example@example.com>
Date: Wed, 27 Jul 2016 14:53:05 -0600
Message-ID: <CAN_P_JMvV7ZpAQhOnDienypLrJmuhN=LQWweu4yScw4jQyXY2w@mail.gmail.com>
Subject: Different File Types
To: example@example.comom
Content-Type: multipart/mixed; boundary=001a113f8ad03e85160538a4343c
"
["dkim"]=>
string(22) "{@sendgrid.com : pass}"
["content-ids"]=>
string(37) "{"ii_1562e2169c132d83":"attachment1"}"
["to"]=>
string(26) "example@example.comom"
["html"]=>
string(479) "<div dir="ltr">Here's an email with multiple attachments<div><br></div><div><img src="cid:ii_1562e2169c132d83" alt="Inline image 1" width="455" height="544"><br clear="all"><div><br></div>-- <br><div class="gmail_signature" data-smartmail="gmail_signature"><div dir="ltr"><img src="https://sendgrid.com/brand/sg-logo-email.png" width="96" height="17"><br><div><br></div></div></div>
</div></div>
"
["from"]=>
string(33) "Sender Name example@example.com"
["text"]=>
string(139) "Here's an email with multiple attachments
"
["sender_ip"]=>
string(14) "209.85.223.169"
["spam_report"]=>
string(844) "Spam detection software, running on the system "mx0047p1mdw1.sendgrid.net", has
identified this incoming email as possible spam. The original message
has been attached to this so you can view it (if it isn't spam) or label
similar future email. If you have any questions, see
@@CONTACT_ADDRESS@@ for details.
Content preview: Here's an email with multiple attachments [image: Inline image
1] -- [...]
Content analysis details: (2.6 points, 5.0 required)
pts rule name description
---- ---------------------- --------------------------------------------------
0.8 HTML_IMAGE_RATIO_02 BODY: HTML has a low ratio of text to image area
0.0 HTML_MESSAGE BODY: HTML included in message
1.8 HTML_IMAGE_ONLY_08 BODY: HTML: images with 400-800 bytes of words
0.0 T_MIME_NO_TEXT No text body parts
"
["envelope"]=>
string(66) "{"to":["example@example.comom"],"from":"example@example.com"}"
["attachments"]=>
string(1) "2"
["subject"]=>
string(20) "Different File Types"
["spam_score"]=>
string(5) "2.597"
["attachment-info"]=>
string(287) "{"attachment2":{"filename":"DockMcWordface.docx","name":"DockMcWordface.docx","type":"application/vnd.openxmlformats-officedocument.wordprocessingml.document"},"attachment1":{"filename":"MG_2359.jpg","name":"_MG_2359.jpg","type":"image/jpeg","content-id":"ii_1562e2169c132d83"}}"
["charsets"]=>
string(77) "{"to":"UTF-8","html":"UTF-8","subject":"UTF-8","from":"UTF-8","text":"UTF-8"}"
["SPF"]=>
string(4) "pass"
}

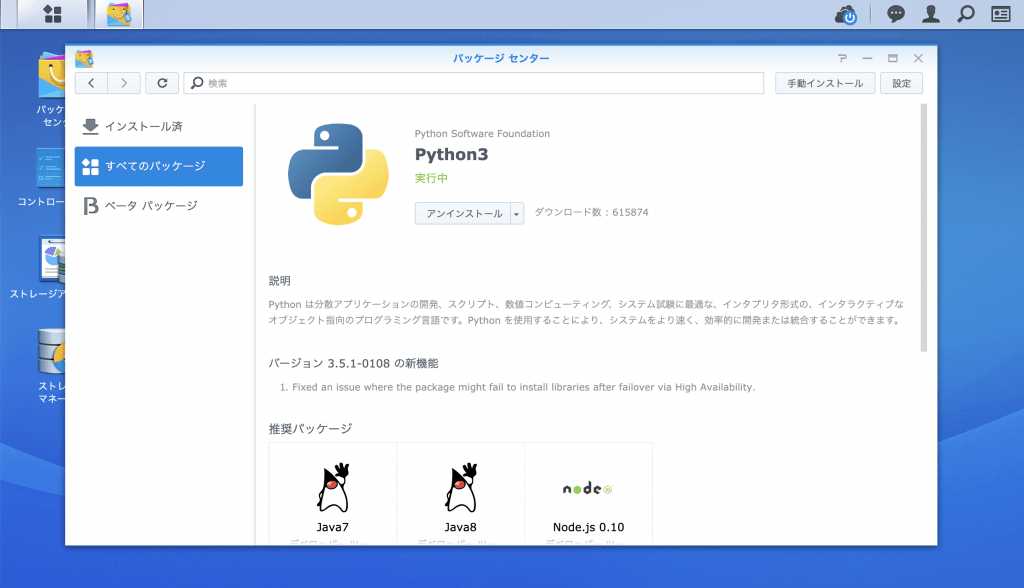

@Synology:~$ sudo curl -k https://bootstrap.pypa.io/get-pip.py | sudo python3
Password:
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 1669k 100 1669k 0 0 2403k 0 --:--:-- --:--:-- --:--:-- 2405k
Collecting pip
Downloading https://files.pythonhosted.org/packages/5c/e0/be401c003291b56efc55aeba6a80ab790d3d4cece2778288d65323009420/pip-19.1.1-py2.py3-none-any.whl (1.4MB)
|████████████████████████████████| 1.4MB 1.3MB/s
Collecting setuptools
Downloading https://files.pythonhosted.org/packages/ec/51/f45cea425fd5cb0b0380f5b0f048ebc1da5b417e48d304838c02d6288a1e/setuptools-41.0.1-py2.py3-none-any.whl (575kB)
|████████████████████████████████| 583kB 7.2MB/s
Collecting wheel
Downloading https://files.pythonhosted.org/packages/bb/10/44230dd6bf3563b8f227dbf344c908d412ad2ff48066476672f3a72e174e/wheel-0.33.4-py2.py3-none-any.whl
Installing collected packages: pip, setuptools, wheel
WARNING: The script wheel is installed in '/volume1/@appstore/py3k/usr/local/bin' which is not on PATH.
Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
Successfully installed pip-19.1.1 setuptools-41.0.1 wheel-0.33.4
@raspberrypi:~ $ lsusb
Bus 001 Device 004: ID 0458:708c KYE Systems Corp. (Mouse Systems) Genius WideCam F100
Bus 001 Device 005: ID 0424:7800 Standard Microsystems Corp.
Bus 001 Device 003: ID 0424:2514 Standard Microsystems Corp. USB 2.0 Hub
Bus 001 Device 002: ID 0424:2514 Standard Microsystems Corp. USB 2.0 Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
rsync version 3.1.3 protocol version 31
Copyright (C) 1996-2018 by Andrew Tridgell, Wayne Davison, and others.
Web site: http://rsync.samba.org/
Capabilities:
64-bit files, 64-bit inums, 32-bit timestamps, 64-bit long ints,
socketpairs, hardlinks, symlinks, IPv6, batchfiles, inplace,
append, ACLs, xattrs, iconv, symtimes, prealloc
rsync comes with ABSOLUTELY NO WARRANTY. This is free software, and you
are welcome to redistribute it under certain conditions. See the GNU
General Public Licence for details.
rsync is a file transfer program capable of efficient remote update
via a fast differencing algorithm.
Usage: rsync [OPTION]... SRC [SRC]... DEST
or rsync [OPTION]... SRC [SRC]... [USER@]HOST:DEST
or rsync [OPTION]... SRC [SRC]... [USER@]HOST::DEST
or rsync [OPTION]... SRC [SRC]... rsync://[USER@]HOST[:PORT]/DEST
or rsync [OPTION]... [USER@]HOST:SRC [DEST]
or rsync [OPTION]... [USER@]HOST::SRC [DEST]
or rsync [OPTION]... rsync://[USER@]HOST[:PORT]/SRC [DEST]
The ':' usages connect via remote shell, while '::' & 'rsync://' usages connect
to an rsync daemon, and require SRC or DEST to start with a module name.
Options
-v, --verbose increase verbosity
--info=FLAGS fine-grained informational verbosity
--debug=FLAGS fine-grained debug verbosity
--msgs2stderr special output handling for debugging
-q, --quiet suppress non-error messages
--no-motd suppress daemon-mode MOTD (see manpage caveat)
-c, --checksum skip based on checksum, not mod-time & size
-a, --archive archive mode; equals -rlptgoD (no -H,-A,-X)
--no-OPTION turn off an implied OPTION (e.g. --no-D)
-r, --recursive recurse into directories
-R, --relative use relative path names
--no-implied-dirs don't send implied dirs with --relative
-b, --backup make backups (see --suffix & --backup-dir)
--backup-dir=DIR make backups into hierarchy based in DIR
--suffix=SUFFIX set backup suffix (default ~ w/o --backup-dir)
-u, --update skip files that are newer on the receiver
--inplace update destination files in-place (SEE MAN PAGE)
--append append data onto shorter files
--append-verify like --append, but with old data in file checksum
-d, --dirs transfer directories without recursing
-l, --links copy symlinks as symlinks
-L, --copy-links transform symlink into referent file/dir
--copy-unsafe-links only "unsafe" symlinks are transformed
--safe-links ignore symlinks that point outside the source tree
--munge-links munge symlinks to make them safer (but unusable)
-k, --copy-dirlinks transform symlink to a dir into referent dir
-K, --keep-dirlinks treat symlinked dir on receiver as dir
-H, --hard-links preserve hard links
-p, --perms preserve permissions
-E, --executability preserve the file's executability
--chmod=CHMOD affect file and/or directory permissions
-A, --acls preserve ACLs (implies --perms)
-X, --xattrs preserve extended attributes
-o, --owner preserve owner (super-user only)
-g, --group preserve group
--devices preserve device files (super-user only)
--copy-devices copy device contents as regular file
--specials preserve special files
-D same as --devices --specials
-t, --times preserve modification times
-O, --omit-dir-times omit directories from --times
-J, --omit-link-times omit symlinks from --times
--super receiver attempts super-user activities
--fake-super store/recover privileged attrs using xattrs
-S, --sparse turn sequences of nulls into sparse blocks
--preallocate allocate dest files before writing them
-n, --dry-run perform a trial run with no changes made
-W, --whole-file copy files whole (without delta-xfer algorithm)
--checksum-choice=STR choose the checksum algorithms
-x, --one-file-system don't cross filesystem boundaries
-B, --block-size=SIZE force a fixed checksum block-size
-e, --rsh=COMMAND specify the remote shell to use
--rsync-path=PROGRAM specify the rsync to run on the remote machine
--existing skip creating new files on receiver
--ignore-existing skip updating files that already exist on receiver
--remove-source-files sender removes synchronized files (non-dirs)
--del an alias for --delete-during
--delete delete extraneous files from destination dirs
--delete-before receiver deletes before transfer, not during
--delete-during receiver deletes during the transfer
--delete-delay find deletions during, delete after
--delete-after receiver deletes after transfer, not during
--delete-excluded also delete excluded files from destination dirs
--ignore-missing-args ignore missing source args without error
--delete-missing-args delete missing source args from destination
--ignore-errors delete even if there are I/O errors
--force force deletion of directories even if not empty
--max-delete=NUM don't delete more than NUM files
--max-size=SIZE don't transfer any file larger than SIZE
--min-size=SIZE don't transfer any file smaller than SIZE
--partial keep partially transferred files
--partial-dir=DIR put a partially transferred file into DIR
--delay-updates put all updated files into place at transfer's end
-m, --prune-empty-dirs prune empty directory chains from the file-list
--numeric-ids don't map uid/gid values by user/group name
--usermap=STRING custom username mapping
--groupmap=STRING custom groupname mapping
--chown=USER:GROUP simple username/groupname mapping
--timeout=SECONDS set I/O timeout in seconds
--contimeout=SECONDS set daemon connection timeout in seconds
-I, --ignore-times don't skip files that match in size and mod-time
-M, --remote-option=OPTION send OPTION to the remote side only
--size-only skip files that match in size
-@, --modify-window=NUM set the accuracy for mod-time comparisons
-T, --temp-dir=DIR create temporary files in directory DIR
-y, --fuzzy find similar file for basis if no dest file
--compare-dest=DIR also compare destination files relative to DIR
--copy-dest=DIR ... and include copies of unchanged files
--link-dest=DIR hardlink to files in DIR when unchanged
-z, --compress compress file data during the transfer
--compress-level=NUM explicitly set compression level
--skip-compress=LIST skip compressing files with a suffix in LIST
-C, --cvs-exclude auto-ignore files the same way CVS does
-f, --filter=RULE add a file-filtering RULE
-F same as --filter='dir-merge /.rsync-filter'
repeated: --filter='- .rsync-filter'
--exclude=PATTERN exclude files matching PATTERN
--exclude-from=FILE read exclude patterns from FILE
--include=PATTERN don't exclude files matching PATTERN
--include-from=FILE read include patterns from FILE
--files-from=FILE read list of source-file names from FILE
-0, --from0 all *-from/filter files are delimited by 0s
-s, --protect-args no space-splitting; only wildcard special-chars
--address=ADDRESS bind address for outgoing socket to daemon
--port=PORT specify double-colon alternate port number
--sockopts=OPTIONS specify custom TCP options
--blocking-io use blocking I/O for the remote shell
--stats give some file-transfer stats
-8, --8-bit-output leave high-bit chars unescaped in output
-h, --human-readable output numbers in a human-readable format
--progress show progress during transfer
-P same as --partial --progress
-i, --itemize-changes output a change-summary for all updates
--out-format=FORMAT output updates using the specified FORMAT
--log-file=FILE log what we're doing to the specified FILE
--log-file-format=FMT log updates using the specified FMT
--password-file=FILE read daemon-access password from FILE
--list-only list the files instead of copying them
--bwlimit=RATE limit socket I/O bandwidth
--stop-at=y-m-dTh:m Stop rsync at year-month-dayThour:minute
--time-limit=MINS Stop rsync after MINS minutes have elapsed
--outbuf=N|L|B set output buffering to None, Line, or Block
--write-batch=FILE write a batched update to FILE
--only-write-batch=FILE like --write-batch but w/o updating destination
--read-batch=FILE read a batched update from FILE
--protocol=NUM force an older protocol version to be used
--iconv=CONVERT_SPEC request charset conversion of filenames
--checksum-seed=NUM set block/file checksum seed (advanced)
--noatime do not alter atime when opening source files
-4, --ipv4 prefer IPv4
-6, --ipv6 prefer IPv6
--version print version number
(-h) --help show this help (-h is --help only if used alone)
Use "rsync --daemon --help" to see the daemon-mode command-line options.
Please see the rsync(1) and rsyncd.conf(5) man pages for full documentation.
See http://rsync.samba.org/ for updates, bug reports, and answers

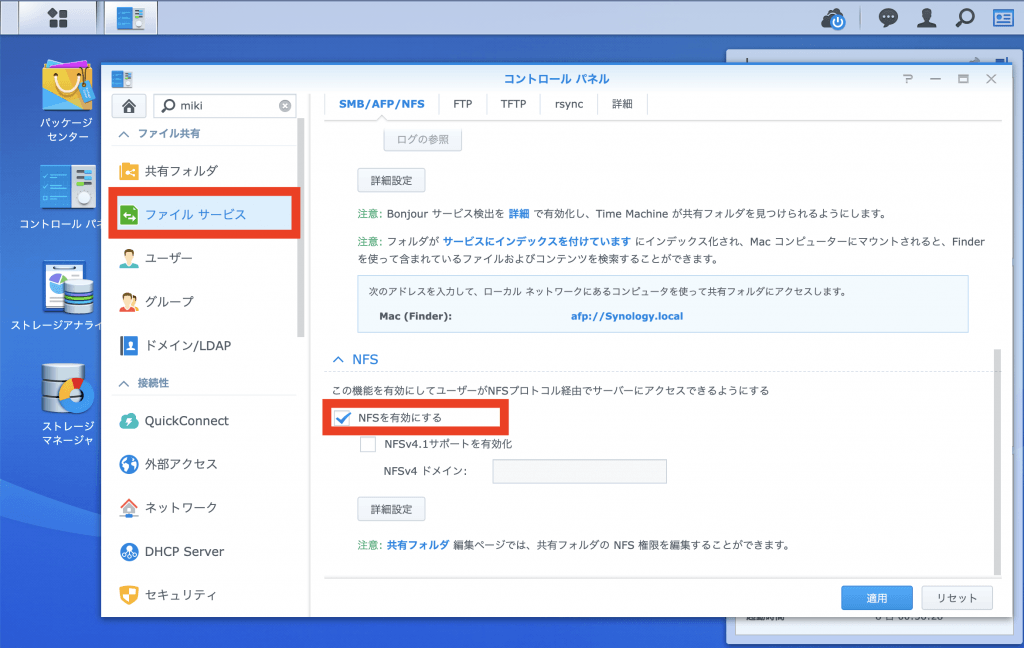

@raspberrypi:~ $ sudo apt-get install nfs-common
[sudo] password for:
nfs-common is already the newest version (1:1.3.4-2.5).
0 upgraded, 0 newly installed, 0 to remove and 26 not upgraded.

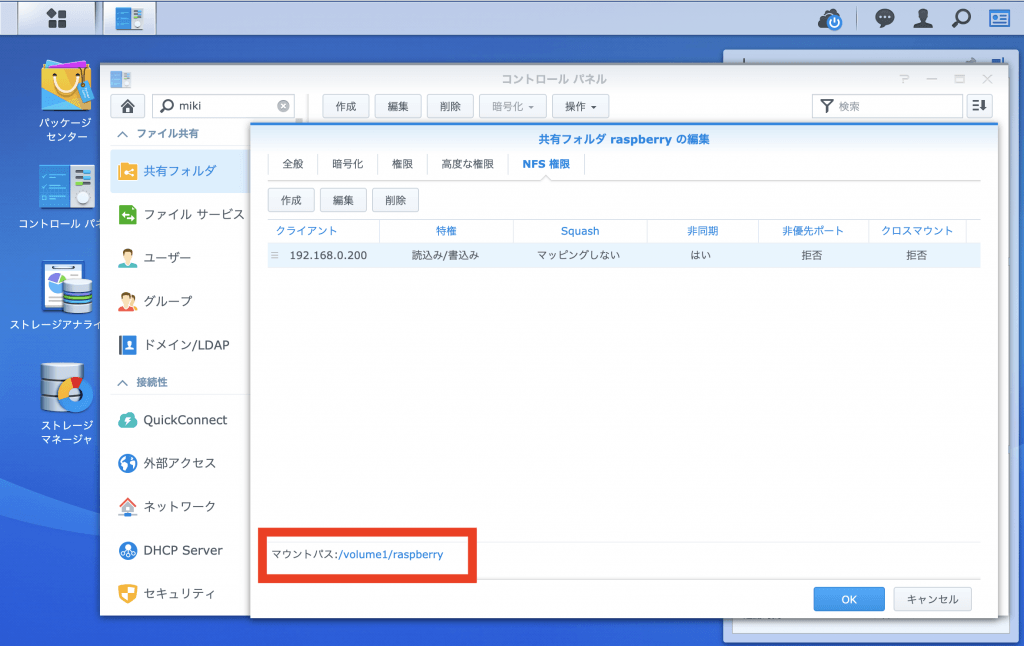

@raspberrypi:~ $ sudo showmount -e 192.168.0.100
Export list for 192.168.0.100:
/volume1/raspberry 192.168.0.200
@raspberrypi:~ $ sudo mkdir /mnt/synology
@raspberrypi:~ $ sudo mount -t nfs 192.168.0.100:/volume1/raspberry /mnt/synology
Raspberry Pi起動・再起動時のNFS自動マウント
/etc/fstabにNFSボリュームのマウント情報を記載
@raspberrypi:~ $ cat /etc/fstab
proc /proc proc defaults 0 0
/dev/mmcblk0p6 /boot vfat defaults 0 2
/dev/mmcblk0p7 / ext4 defaults,noatime 0 1
# a swapfile is not a swap partition, no line here
# use dphys-swapfile swap[on|off] for that
192.168.0.100:/volume1/raspberry /mnt/synology nfs defaults,_netdev 0 0
Raspberry PiのBootオプション変更（NASマウントタイミング変更）
Raspberry PiのBoot Option「Wait for Network at Boot Choose whether to wait for network」を変更します。「raspi-config」を用いて、設定を行います。

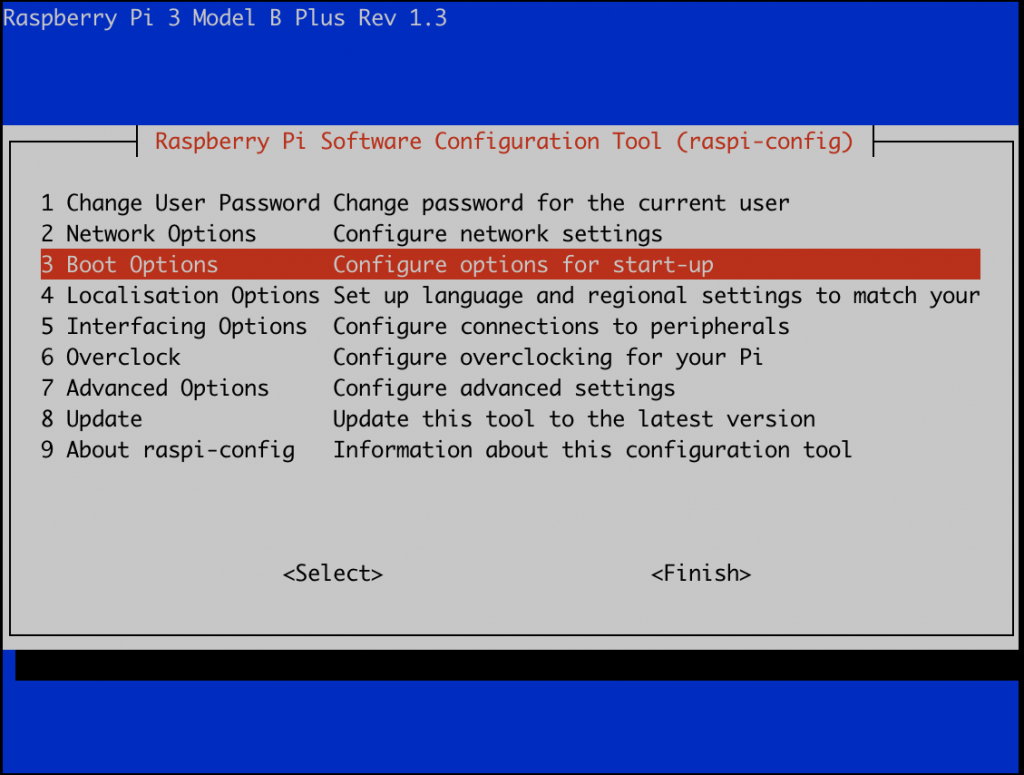

@raspberrypi:~ $ sudo raspi-config
3 Boot Options Configure options for start-up を選択

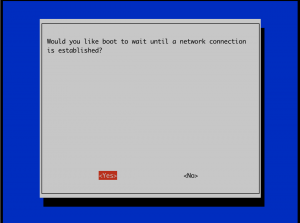

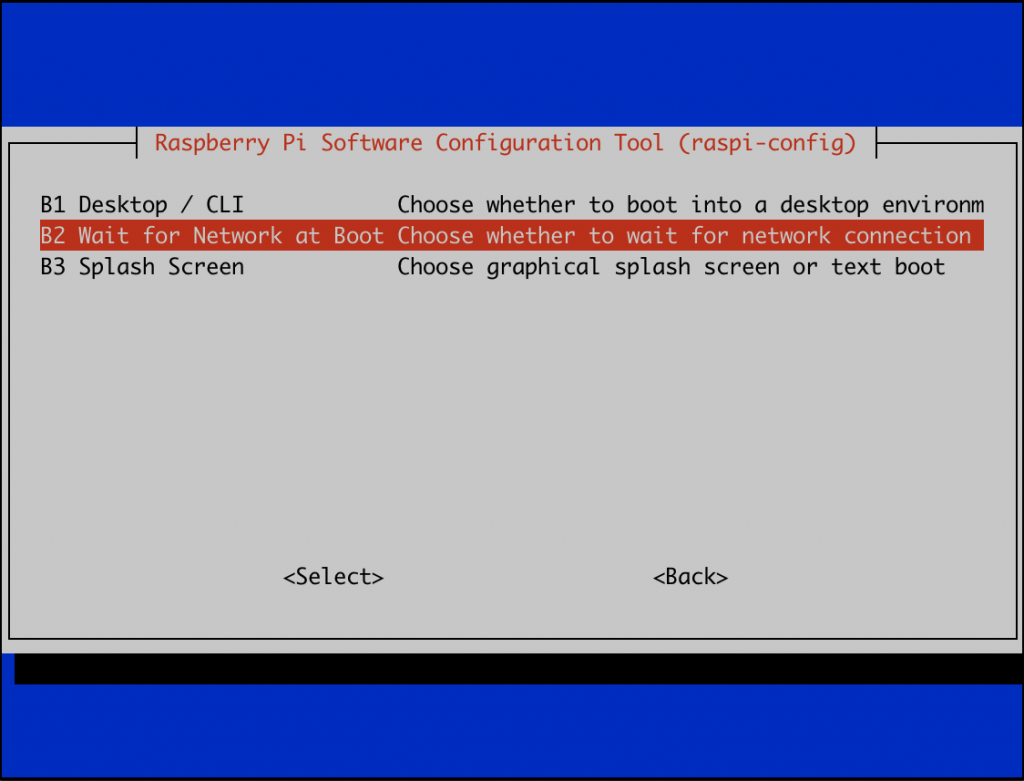

B2 Wait for Network at Boot Chose whether to wait for network connection を選択

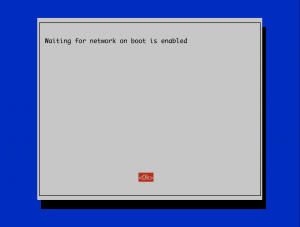

<Yes> を選択
<Ok> を選択
/etc/rc.localに３秒Sleep後マウント
上記の設定後も、起動・再起動時の自動マウントが実行されませんでした。 シスログ（/var/log/syslog）を確認したところ、やはり起動時のマウント時にNASへのネットワークマウントが失敗しておりました。 mount.nfs: Network is unreachable
Jul 9 06:36:22 raspberrypi rpc.mountd[473]: Version 1.3.3 starting
Jul 9 06:36:23 raspberrypi mount[489]: mount.nfs: Network is unreachable
Jul 9 06:36:23 raspberrypi systemd[1]: mnt-synology.mount: Mount process exited, code=exited, status=32/n/a
Jul 9 06:36:23 raspberrypi systemd[1]: mnt-synology.mount: Failed with result 'exit-code'.
Jul 9 06:36:23 raspberrypi systemd[1]: Failed to mount /mnt/synology.
よって、/etc/rc.localに３秒のスリープとマウントコマンドを追加しました。 sleep 3 sudo mount -t nfs 192.168.0.100:/volume1/raspberry /mnt/synology
#!/bin/sh -e
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.
# Print the IP address
_IP=$(hostname -I) || true
if [ "$_IP" ]; then
printf "My IP address is %s\n" "$_IP"
fi
#After Sleep 3, then execute a mount command
sleep 3
sudo mount -t nfs 192.168.0.100:/volume1/raspberry /mnt/synology
exit 0
企業向けなどには固定IPアドレスが利用され、DNS（Domain Name System）運用においてもIPアドレスとドメイン名を固定的に長期間結びつけた運用となる。 個人宅など、一般のインターネットプロバイダ（ISP）を利用した際は、インターネットプロバイダより、一時的なIPアドレスが割り当てられる。
よって、通常の自宅環境でドメインを運用した際は、利用するIPアドレスに合わせてDNSレコードを変更する必要があります。 www.miki-ie.com（不変に利用を続けたい） ⇔ Public IPアドレス（ISP接続毎に変わる）
